R code snippet : Transform from long format to wide format

This post introduces a simple R code snippet for transforming the long format data to the wide format. We occasionally encounter the long format data such as yield curve data since it has two dimensions : maturity and time. For this end, we can use reshape() R built-in function.

Long and Wide formats

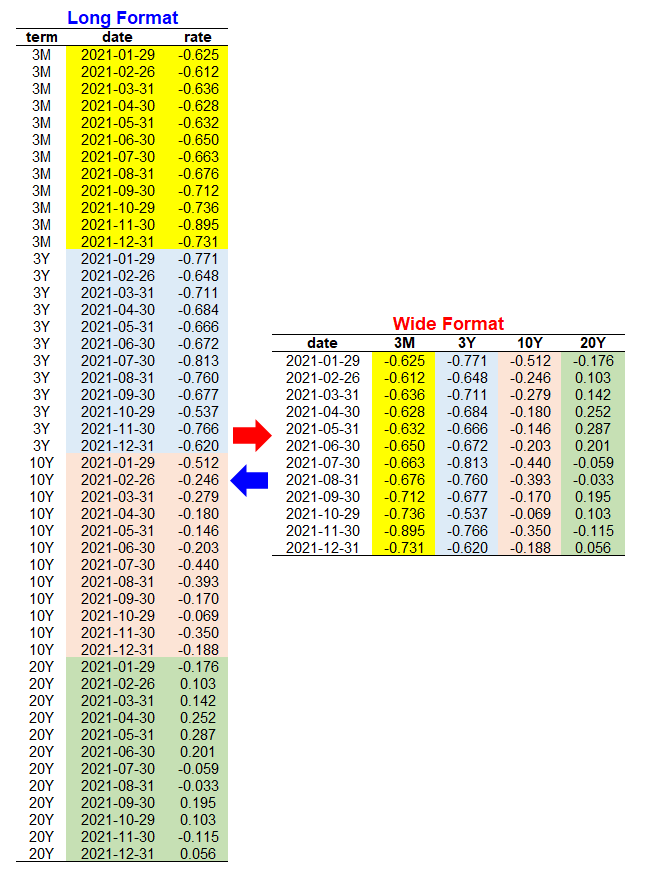

What is the long and wide format? A picture paints a thousand words.

We want to transform the long format data to the wide format data for a panel of time series analysis such as a term structure of interest rates. As financial data is usually extracted from database system, we occasionally encounter the long format data. For example, the data in the above figure is a sample of Euro area yield curve which has the long format. To facilitate an empirical analysis, the wide format is appropriate.

Transforming between the long and wide format can be carried out by using reshape() R function. No further explanation is needed. Let's see the R code below.

R code

The following R code reads sample data and transform the long format to the wide format and vice versa. When using the reshape() function, we need to set the direction argument as "long" or "wide". In particular, we need to add new column name with some delimitator (., _, etc) to the wide format data when we transform it to the long format.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103

#========================================================# # Quantitative Financial Econometrics & Derivatives  # ML/DL using R, Python, Tensorflow by Sang-Heon Lee  # # https://shleeai.blogspot.com #--------------------------------------------------------# # Long to wide format and vice versa for yield data #========================================================#   graphics.off(); rm(list = ls())   # sample data : ECB zero yields str_data <- "term    date    rate             3M    2021-01-29    -0.625             3M    2021-02-26    -0.612             3M    2021-03-31    -0.636             3M    2021-04-30    -0.628             3M    2021-05-31    -0.632             3M    2021-06-30    -0.650             3M    2021-07-30    -0.663             3M    2021-08-31    -0.676             3M    2021-09-30    -0.712             3M    2021-10-29    -0.736             3M    2021-11-30    -0.895             3M    2021-12-31    -0.731             3Y    2021-01-29    -0.771             3Y    2021-02-26    -0.648             3Y    2021-03-31    -0.711             3Y    2021-04-30    -0.684             3Y    2021-05-31    -0.666             3Y    2021-06-30    -0.672             3Y    2021-07-30    -0.813             3Y    2021-08-31    -0.760             3Y    2021-09-30    -0.677             3Y    2021-10-29    -0.537             3Y    2021-11-30    -0.766             3Y    2021-12-31    -0.620             10Y    2021-01-29    -0.512             10Y    2021-02-26    -0.246             10Y    2021-03-31    -0.279             10Y    2021-04-30    -0.180             10Y    2021-05-31    -0.146             10Y    2021-06-30    -0.203             10Y    2021-07-30    -0.440             10Y    2021-08-31    -0.393             10Y    2021-09-30    -0.170             10Y    2021-10-29    -0.069             10Y    2021-11-30    -0.350             10Y    2021-12-31    -0.188             20Y    2021-01-29    -0.176             20Y    2021-02-26    0.103             20Y    2021-03-31    0.142             20Y    2021-04-30    0.252             20Y    2021-05-31    0.287             20Y    2021-06-30    0.201             20Y    2021-07-30    -0.059             20Y    2021-08-31    -0.033             20Y    2021-09-30    0.195             20Y    2021-10-29    0.103             20Y    2021-11-30    -0.115             20Y    2021-12-31    0.056"   #========================================== # Read a sample of ECB zero coupon yields #========================================== df_long <- read.table(text = str_data, header = TRUE)   #========================================== # Transform LONG to WIDE format #==========================================   # using "wide" option df_wide <- reshape(df_long, direction = "wide",                     idvar = "date",                     timevar = "term") df_wide   # initialize row names rownames(df_long) <- NULL   # delete a unnecessary prefix in column names colnames(df_wide) <- gsub("rate.","", colnames(df_wide)) df_wide   #========================================== # Transform WIDE to LONG format #========================================== df_wide2 <- df_wide   # need to add new column name as a prefix colnames(df_wide2)[-1] <-      paste0("term.", colnames(df_wide)[-1])   # using "long" option df_long2 <- reshape(df_wide2, direction = "long",                      idvar="date",                      varying = colnames(df_wide2)[-1],                      sep = ".")   # initialize row names rownames(df_long2) <- NULL df_long2   Colored by Color Scripter

cs

Running the above R code produces the following wide format of the yield curve data.

We can also transform the wide format data to the long format conversely.
